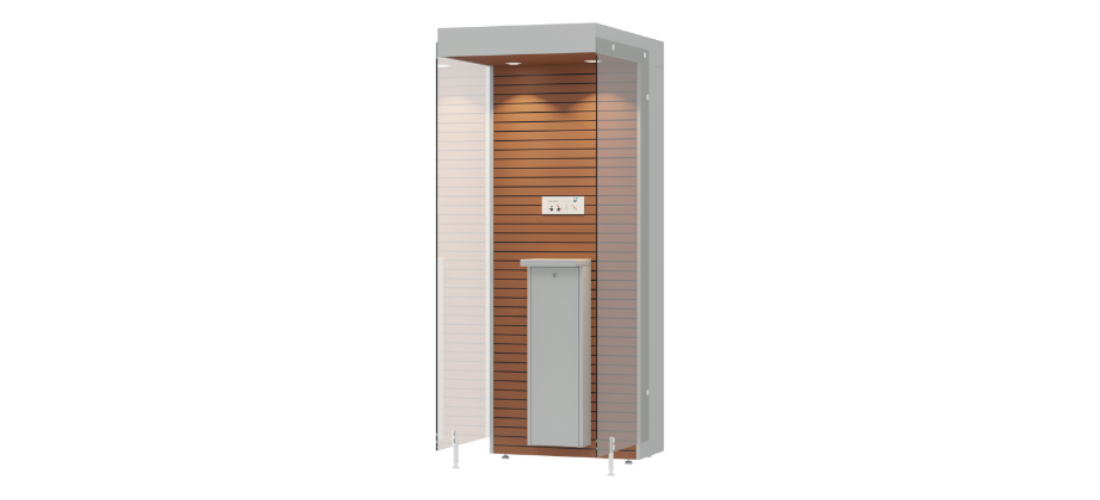

Smoke Solution SP110 One is a compact, single-person smoking cabin designed for airports where space is limited. Multiple units can be placed side by side, offering flexibility without compromising air quality or design.
Ideal for areas near boarding gates, transit zones, staff areas, and VIP lounges, it captures smoke directly at the source to prevent it from spreading. This creates a clean and safe environment for both smokers and non-smokers, while fitting seamlessly into airport facilities.
The smoking cabins capacity is for 1 user and the units can be extended with additional modules. Standing Area : 0.67m2.
Why Use Smoking Cabin
A smoking cabin benefits more than just cleaning the air. A safe, healthy and cost-effective solution that will make sure that non-smokers are not exposed for second hand smoke nor that the smokers are neglected. Furthermore, our solutions guarantee effective eliminations of gases, odour and other insalubrious particles. The reasons are plentiful and to hear more about them please feel free to contact us today.
The Design Behind Smoking Cabin
Door
Smokers can enter the smoking cabin by an automatic door, which also gives accessibility to those who are wheelchair bound.
Lights
The smoking cabin is equipped with LED spot light which automatic will turn on/off when people enter and leave the cabin.
Ashtray
The cigarettes are collected and contained in the certified fireproof and odourless aluminium ashtray.
Fan
Our cabins feature the most powerful, highly efficient, cost reducing fan up till now. The result is outstanding.
SP110 ELEVATION
SP110 One PRODUCT INFORMATION
TECHNICAL INFORMATION |
| Dimensions (L x D x H) – Weight incl. filters | 820 x 1100 x 2200mm |
| Main housing material | Frame housing: Steel SPCC 1.5mm Front: Medium Density Fiberboard (MDF) |
| Main housing colours | Frame housing: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey) Other colours are optional Front panel: Mahogany or Maple. Other colours are optional |
| Glass | 8 mm tempered glass |
| Leak tested | Yes |
| Simultaneous users | 1 person |
FEATURES |
| Adjustability | Variable airflow speeds for standby and operating modes. |
| Power saving | Sensor activation upon entry into the cabin reduces power consumption by adjusting lighting and ventilation speed. |
| Modular construction | Easy to reduce or expand cabin size. Freestanding and movable. |
| Customisation (optional) | LED screen, various sizes of integrated ashtrays, and customised colours. |
OTHER SOLUTIONS
THE TECHNOLOGY BEHIND THE SMOKING CABIN
1-2
In order to create a smoke free environment, it is necessary to capture the smoke before it leaves the cabin and due to our judicious system, the smoking cabin goes in the desired direction and through our very efficient filtration.
2-3
Our filtration system ensures that even the smallest particles are eliminated. The smoking cabin’s design makes it possible for the gases and particles from tobacco smoke goes through the filter and comes out as clean, healthy breathable air. The pollutants remain trapped in the filters. Regular maintenance guarantees that the system is running smoothly and effectively.
4
The certified, fireproof and odourless ashtray in aluminium contains the disposal of ash and cigarette ends.
