Wood Veneer
Metal
Type
The 3SP200 series is part of Smoke Solution’s full range of smoking cabin and lounges in Single, Double and Triple unit combinations. It is available in three flexibility and fully interchangeable models based on our Open, Semi Open or Door Series.
By focusing on atmosphere and wellbeing, smoking cabins are building bridges between smokers and non-smokers allowing them to interact. Our smoking cabin makes it possible for smokers and non-smokers to stay in the same room and still interact without any disturbing from second hand smoke or odour.
The benefits of smoking cabin are plentiful. Producing clean air and eliminating passive smoking are only the main benefits. Other great benefits include time savings and cost reductions from shortened smoke breaks to better energy efficiency. Added to this are improved safety and fireproofing. Our smoking cabin also allowed along certain emergency exits and escape routes.
The smoking cabins starts from 12-18 users and the units can be extended with additional modules. The smallest units can be placed alongside walls.
Why Use Smoking Cabin
A smoking cabin benefits more than just cleaning the air. A safe, healthy and cost-effective solution that will make sure that non-smokers are not exposed for second hand smoke nor that the smokers are neglected. Furthermore, our solutions guarantee effective eliminations of gases, odour and other insalubrious particles. The reasons are plentiful and to hear more about them please feel free to contact us today.
The Design Behind Smoking Cabin
Door
Smokers can enter the smoking cabin by an automatic door, which also gives accessibility to those who are wheelchair bound.
Lights
The smoking cabin is equipped with LED spot light which automatic will turn on/off when people enter and leave the cabin.
Ashtray
The cigarettes are collected and contained in the certified fireproof and odourless aluminium ashtray.
Fan
Our cabins feature the most powerful, highly efficient, cost reducing fan up till now. The result is outstanding.
SP110 ELEVATION

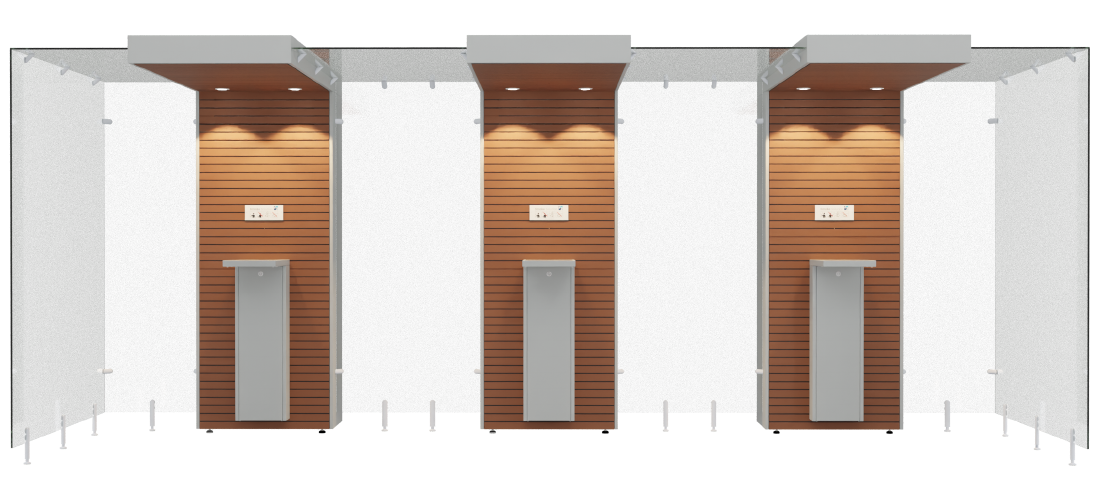

3SP200 PRODUCT INFORMATION
TECHNICAL INFORMATION |
| Dimensions (L x D x H) | 5400 x 2000 x 2200mm |
| Main housing material | Frame housing: Steel SPCC 1.5mm Front: Medium Density Fiberboard (MDF) |
| Main housing colours | Frame housing: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey) Other colours are optional Front panel: Mahogany or Maple. Other colours are optional |
| Glass | 8 mm tempered glass |
| Leak tested | Yes |
| Simultaneous users | 12-18 persons |
*The recommended number of simultaneous users is based on typical adult occupancy under standard operating conditions. Actual comfort and usable space may vary depending on individual preferences, clothing, and any personal items or luggage brought into the cabin.
FEATURES |
| Adjustability | Variable airflow speeds for standby and operating modes. |
| Power saving | Sensor activation upon entry into the cabin reduces power consumption by adjusting lighting and ventilation speed. |
| Modular construction | Easy to reduce or expand cabin size. Freestanding and movable. |
| Entrance options | Open, Semi-Open, Soft Close Sliding Door, Automatic Door |
| Customisation (optional) | LED screen, various sizes of integrated ashtrays, and customised colours. |
OTHER SOLUTIONS
THE TECHNOLOGY BEHIND THE SMOKING CABIN
1-2
In order to create a smoke free environment, it is necessary to capture the smoke before it leaves the cabin and due to our judicious system, the smoking cabin goes in the desired direction and through our very efficient filtration.
2-3
Our filtration system ensures that even the smallest particles are eliminated. The smoking cabin’s design makes it possible for the gases and particles from tobacco smoke goes through the filter and comes out as clean, healthy breathable air. The pollutants remain trapped in the filters. Regular maintenance guarantees that the system is running smoothly and effectively.
4
The certified, fireproof and odourless ashtray in aluminium contains the disposal of ash and cigarette ends.
